At the end of last week I had successfully, after a bunch of failed attempts, cut out a pristine pick guard for The Clydesdale offset guitar, so I started this week by bringing together all the bits of the guitar and working on the electronics. First was just to get all the final bits together onto the guitar. Here it is from the front:

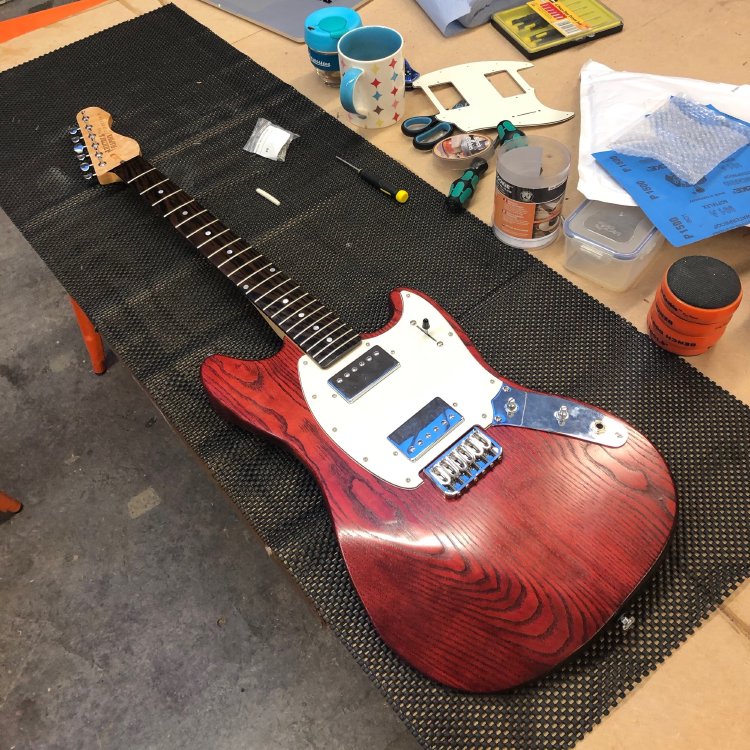

A mustang-style guitar sits on the workbench, front-side up. It has a crimson body and a white pickguard, into which are installed two chrome covered humbuckers. The neck is maple with a wenge fretboard.

and from the back:

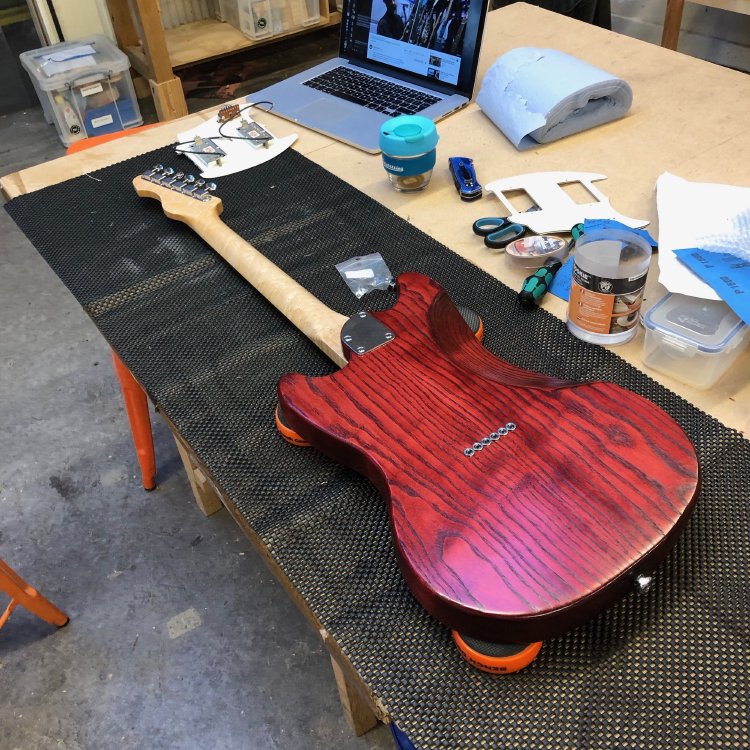

A mustang-style guitar sits on the workbench, rear-side up. It has a crimson body and you can see six string ferrules in the back of it, and it has a curved neck-pocket. The neck is maple with vintage style tuners.

It’s looking lovely. I did a quick rough shaping of the nut, but that’s one of the last bits to do at final setup time, once the electronics are done and we’re just dialling in the final playability.

The electronics took me longer than it should of because I have a tendency to leave as much wire on the pickups etc. as I can, just in case someone wants to re-purpose the pickups later or other such events. However, there really isn’t much room to manoeuvre in this guitar, so I ended up effectively wriring everything up twice: first with lots of spare wire, and then having realised I didn’t have enough space in the body cavities for all that wire I then had to unsoldered everything, cut things to a better size, and put it back together again (and thankfully it all fit nicely this time). Partly the limited space is down to the mustang not having much room under the metal control plate combined with using push/pull pots to let the player switch the pickups between humbucker and single coil modes - fender really didn’t have this in mind for this kind of guitar. The other reason for the lack of room was my own doing: in an attempt not to remove too much wood from around the pickups (to leave the body being solid rather than hollowed out) I’d left not a huge amount of room when I designed the space behind the pick guard: in retrospect I should have left more room. Still, we got there in the end.

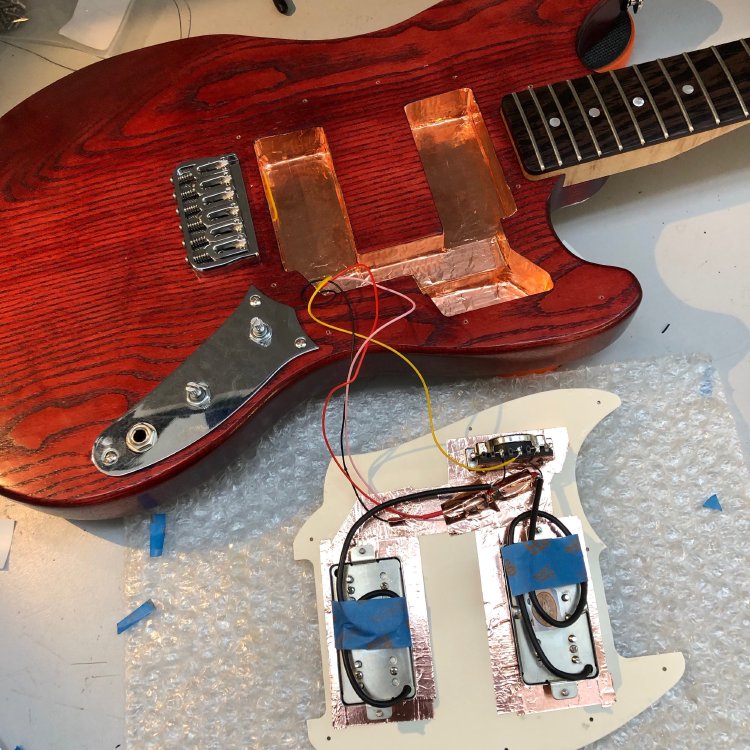

A close up of the guitar body on the workbench, with the pickguard off to the side. The body cavities are lined with copper tape, and you can see some wires going over to the pickguard in which is mounted the pickups and a selector switch.

Electronics done I could finally string up the guitar and see how much setup was needed. This is where I discovered that the neck is sitting too high for the fixed bridge on this guitar, and the strings were buzzing on the frets even with the saddles extended as high as they’d go.

This hadn’t been an issue on the prototype offset, which used the dynamic vibrato bridge system, and that bridge naturally sits quite a bit higher than the hardtail bridge the customer wanted on this build. I did have a look at Fender’s Mustang guitars with a hardtail bridge, and they do tend to have them with the saddles set really high. In the photo below you can see quite a lot of screw under the saddles on the bridge, more so than I’d expect on say a Strat.

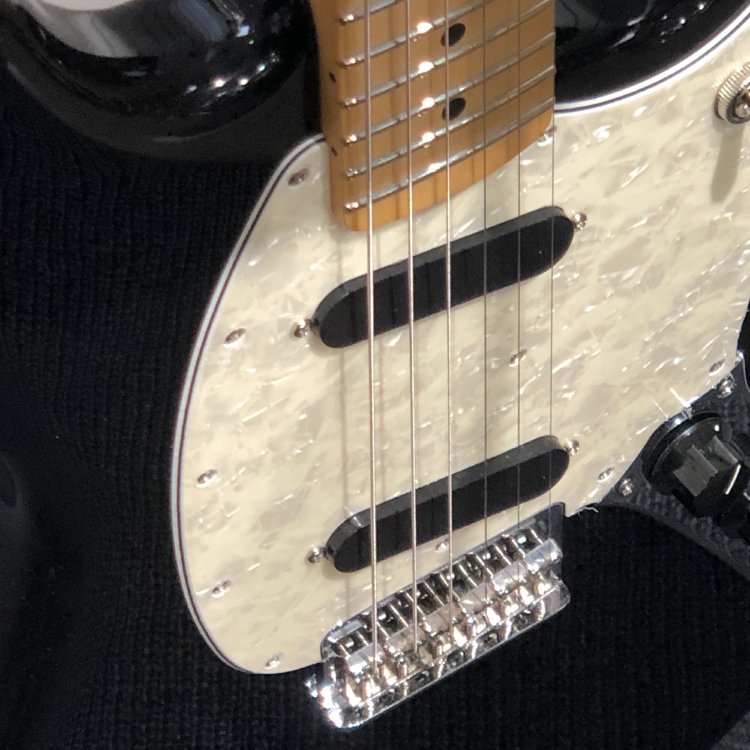

The close up of a Fender Mustang showing the bridge, where all the saddles are set to their maximum height.

However, on The Clydesdale it’s just a bit too much: I think I need to take a millimetre or so out of the neck pocket to get things sitting comfortably. So this week I need to take the neck off and with the hand router remove some wood from the neck pocket using the hand router and a short follow bit. I’ll need to make a small jig to let me use the hand router over the finished body without scratching the surface, but I’ve actually done this before on The Chuncaster t-style I made early on, which had a similar problem.

The frustrating bit about it is I find out these sort of things at this late stage in the build: ideally I’d string the guitar up early on before doing any finishing. However, with Fender style guitars this is something I’m generally reluctant to do, for two reasons. Firstly, when you assemble the guitar and put it under tension by stringing it up you’ll find the metal parts like the tuning pegs and the neck plate will mark the wood as they press into it. Doing this after you’ve oiled the wood makes such marks less pronounced as the oil toughens up the wood’s outer surface. The second reason I try to avoid it is for string through guitars like this one I’d need to put in the ferrules on the back which then I can’t typically not remove, but would like to not have there when I do the finishing. Hence why I only tend to find out now that I need to adjust heights etc. after it’s finished and I then need to be very careful about such adjustments.

Mostly all this is down to a lack of experience: if I made a lot of guitars I’d be better at predicting things like this before we get this far into the process. But it is also useful learning for my own guitar designs. I think with a bit of tweaking I can design the guitar in such a way that it won’t notably mark when assembled and put under tension before finishing (e.g., using recessed screw ferrules to hold the neck rather than a Fender style neck plate).

Anyway, I have a fun week ahead of me getting the guitar adjusted so it’s a musical instrument rather than a pretty bit of art.

The rest of the week was taken up with some sudden contract work, so I didn’t do much else in the shop. I did manage to pick up some bits for the other projects I’ve got going. I was in London for a gig (see below), so I swung by GuitarGuitar in Camden and picked up a new pedal board PSU (another Walrus Audio Aetos in the end, given I know it and have been happy with it), which means at some point this coming week I can finally assemble my pedalboard prototype and start (literally) stress testing it by mounting all my pedals on it and stomping on it bunch.

I also managed to raid the spares trove in Makespace and find the correct capacitors for the fuzz pedal I built last week.

A photo of my hand, in which sits half a dozen mixed capacitors.

Putting these caps in place solved the sound drop issue I as experiencing with it, and now I have that classic fuzz tone. At some point I can now take this from breadboard to some veroboard (or if I find time, a custom PCB via Eagle) and mount it on my pedalboard and have it in regular rotation.
